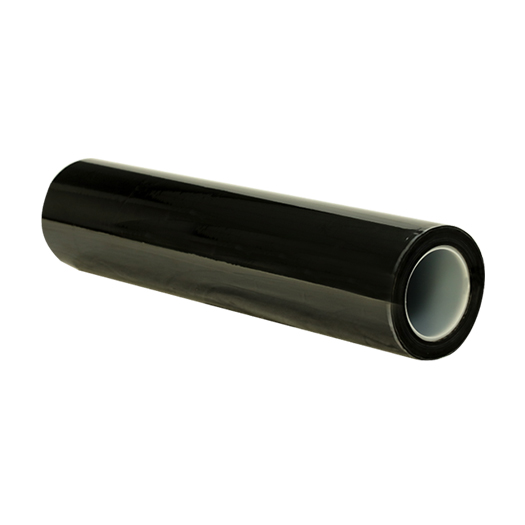

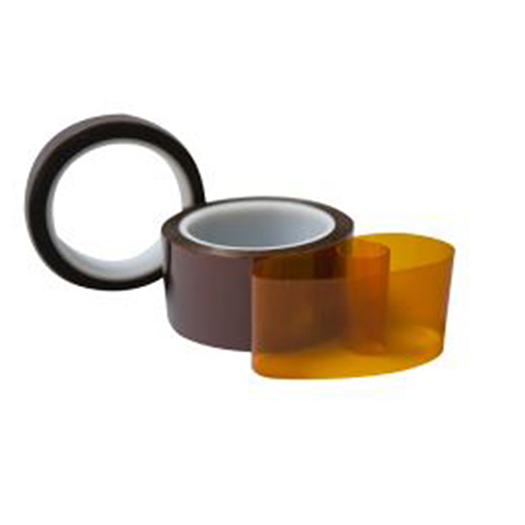

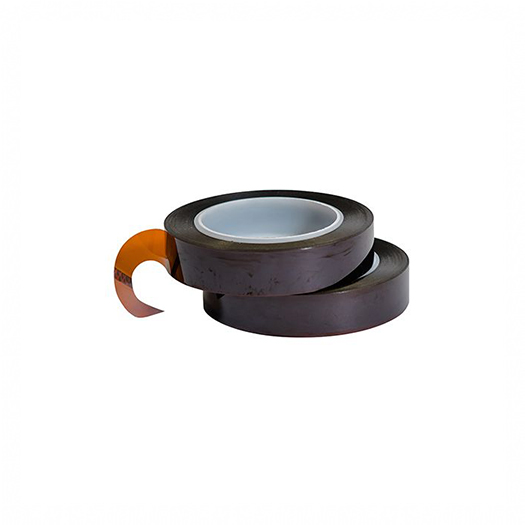

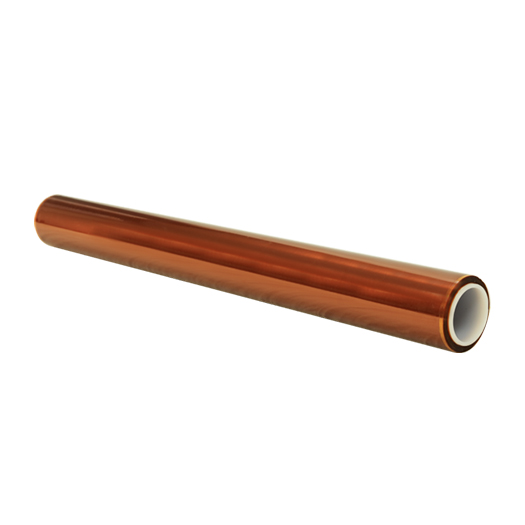

Polyimide film tape
Product Descriptions:
Product Applications:
▪ High temperature shielding of PCB,
mobile phone and various electronic
appliances, Kapton high temperature label
▪ In the electrical industry, such as
high-temperature insulation bundling of
transformer coils, insulation repair of
motor cables
▪ High temperature shielding protection such
as 3D printing plates, high temperature
powder spraying shielding
▪ Production and application of resistance
capacitors and various electronic parts
▪ Solder masking of printed circuit boards
and other high temperature applications
Features/Benefits
▪ H-class motor and
transformer coil insulation wrapping, high
temperature resistant coil end wrapping and
fixing, temperature measurement and thermal
resistance protection, capacitor and wire
entanglement and other bonding insulation under
high temperature working conditions
▪ SMT temperature protection, electronic
switches, PCB board gold finger protection,
electronic transformers, relays, etc.
▪ Various electronic components that need high
temperature resistance and moisture protection
▪ Low static and flame retardant polyimide tape
▪ Reinforced protection of high temperature
surface
▪ High temperature spray paint for metal
materials
▪ Sandblasting coating to shield surface
protection
Mechanical Properties:
| Name | PI tape |
| color | Black/Brown |
| Backing | Polyimide film |
| Adhesive | Silicone/Acrylic |
| Adhesion | 3-6 |
| Elongation at break | 45-60 |
| Dielectric strength | ＞5000 |
| Temperature Resistance | 260℃(500℉) |
| Insulation class | H |
| Note: The data recorded in this TDS are representative values rather than guaranteed values. To improve product performance, specifications are subject to change without notice. The use of the product recorded in this TDS is only an example. The product can have various application scenarios and environments, which are beyond our control. Therefore, you need to make your own sufficient before using the product to determine whether the product is suitable for your production process and conditions. Evaluate to confirm whether its performance and effect are in line with expectations. For Industries that need to be considered safe, please test and confirm their safety in advance. In addition, the company does not guarantee that the use described in this TDS will not cause any patent infringement. Before using this product, please carefully read the explanatory text and safety data sheet (MSDS) marked on the main body of the product. This product is manufactured for general industrial Industries. Do not use for medical purposes. The product may precipitate during storage. This is a normal phenomenon. Please mix well before use and strictly follow the product storage and transportation instructions. In order to obtain the best performance, the bonding surface should be clean, dry and free of grease. For high-strength structural bonds, special surface treatment can increase bond strength and durability. The material taken out of the container may be contaminated during use. Do not put the material back into the original container. Duxerialscannot be held responsible for products that are contaminated or stored under non-instructed conditions. | |
