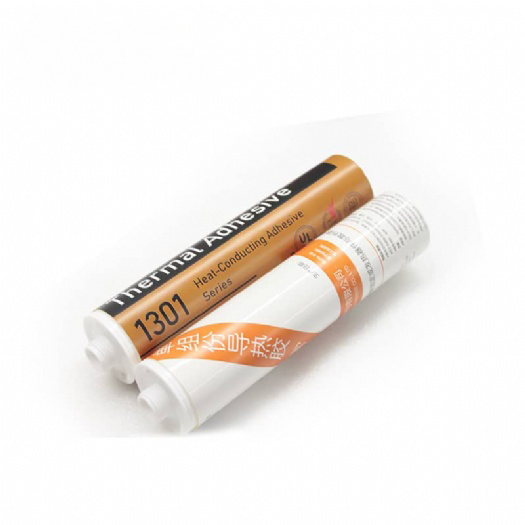

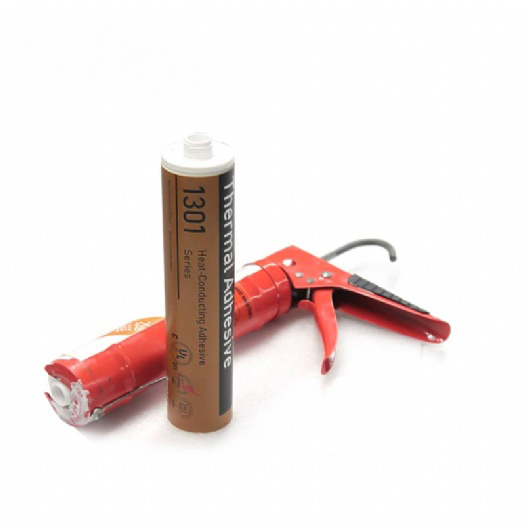

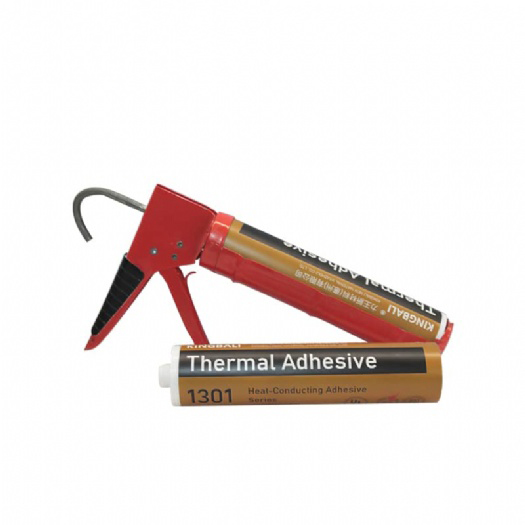

3101 Single-component thermal adhesive
Product features
Typical Applications:
3101 Thermal Grease/Paste used for bonding and fixing heating elements or thermal bonding between heating devices and radiators.
● Automotive electronic control units (ECUs)
● Engine control
● Transmission control
● Braking/traction control
● Automotive electronic control units (ECUs)
● Power conversion equipment
● Power supplies and uninterruptible power supplies
● Power semiconductors
● MOSFET arrays with common heat sinks
● Televisions and consumer electronics
Features / Benefits:
1301 series belongs to the de-alcohol-type single component room temperature silicone sulfide rubber products, high thermal conductivity, with a faster drying and vulcanization speed, flame retardant grade reached UL94 V0 class, the product vulcanization of the metal non-corrosive, easy to use.
Properties
| Uncured characteristics (25℃/70%RH) | 3101 | standard test |
| Exterior | White, cream | Visually |
| Surface drying time (25°C) | ≤10 Min | Finger touch |
| Specific gravity (25°C) | 1.41±0.05 g/cm3 | ASTM D792 |
| Curing characteristics (7 days at 25°C/RH70%) | ||
| hardness | ≥70 Shore 00 | ASTM D2240 |
| Elongation | ≥80% | ASTM D412 |
| Tensile Strength | ≥1.5 Mpa | ASTM D412 |
| Shear strength | ≥1.0 Mpa | ASTM D1002 |
| Thermal Conductivity | 1.0 W/M.K | ASTM D5470 |
| Low-molecular-weight siloxane (D3-D10) | ＜300 PPM | GC / MS |
| Volume resistance | ≥1.0ｘ10 14 Ω.cm | ASTM D257 |
| Dielectric constant (60HZ) | ≤3.5 | ASTM D149 |
| Dielectric strength | ≥18 KV/mm | ASTM D149 |
| Flammability rating | V0 | UL 94 |
| Note: The data recorded on this website are representative values rather than guaranteed values. To improve product performance, specifications are subject to change without notice. The use of the product recorded in this website is just an example. The product can have a variety of different application scenarios and environments, which are beyond our control. Therefore, whether the product is suitable for your production process and conditions, you need to make full use of it before using it. Evaluate to confirm whether its performance and effect are in line with expectations. For Industries that need to be considered safe, please test and confirm their safety in advance. In addition, the company does not guarantee that the purposes recorded on this website will not infringe any patents. Before using this product, please carefully read the explanatory text and safety data sheet (MSDS) marked on the main body of the product. This product is manufactured for general industrial Industries. Do not use for medical purposes. The product may precipitate during storage. This is a normal phenomenon. Please mix well before use and strictly follow the product storage and transportation instructions. In order to obtain the best performance, the bonding surface should be clean, dry and free of grease. For high-strength structural bonds, special surface treatment can increase bond strength and durability. The material taken out of the container may be contaminated during use. Do not put the material back into the original container. Duxerials cannot be held responsible for products that are contaminated or stored under non-instructed conditions. | ||
