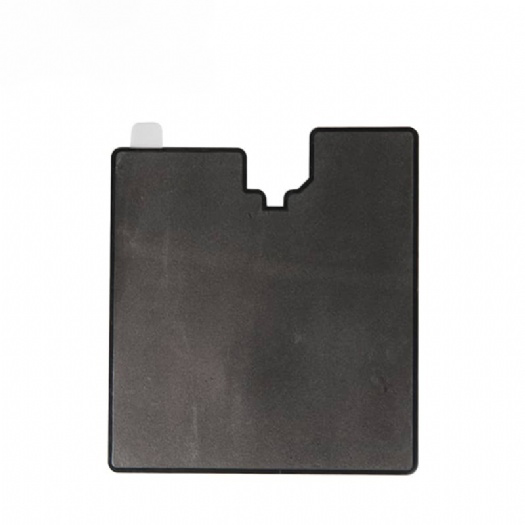

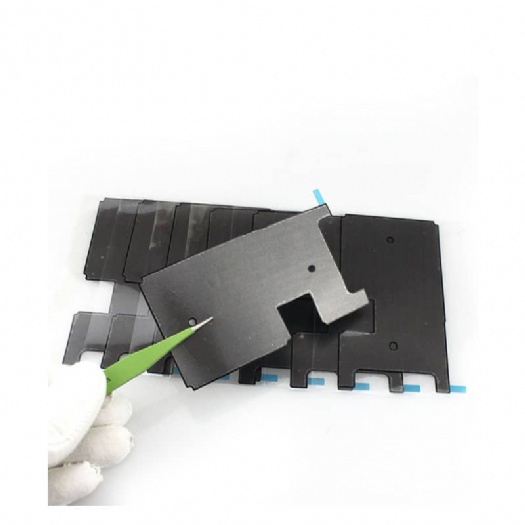

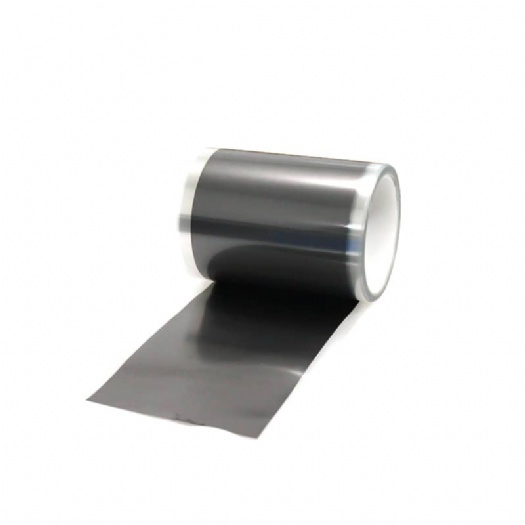

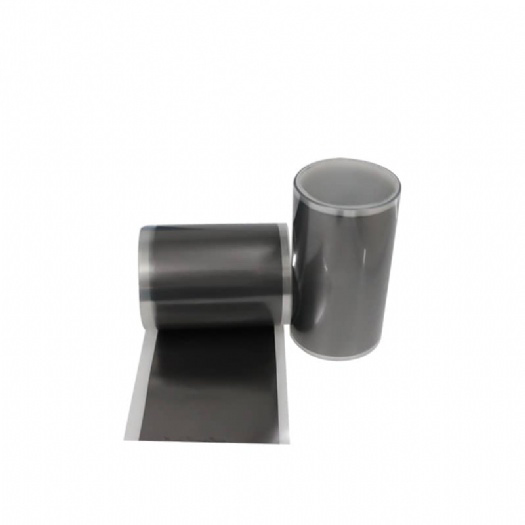

091207 Natural Thermal Graphite Sheets
Product features
Typical Applications:
PDP,LCD TV
Laptop,Notebook,Projector
Mobile phone
Automotive electronics
displays, lighting, telecom
Hand‐held devices
Set top box
LED Power Supply
LED Controller
LED Lights
LED Ceilinglamp
Monitoring the Power Box
AD-DC Power Adapters
Rainproof LED Power Supply
Waterproof LED Power Supply
Piranha wroof and common lED module
LED module for Channelletters
SMD LED module
LED Flesible strip, LED bar
LED PanelLight
Laptop,Notebook,Projector
Mobile phone
Automotive electronics
displays, lighting, telecom
Hand‐held devices
Set top box
LED Power Supply
LED Controller
LED Lights
LED Ceilinglamp
Monitoring the Power Box
AD-DC Power Adapters
Rainproof LED Power Supply
Waterproof LED Power Supply
Piranha wroof and common lED module
LED module for Channelletters
SMD LED module
LED Flesible strip, LED bar
LED PanelLight
Features / Benefits:
▪ Natural graphite thermal conductivity is 150-300 W/M.K;
▪ flexible flakes, can be processed into a variety of shapes, good bending performance;
▪ density is 1.0-1.5 g/cm³ (approximately 1/3-3/4 of aluminum or 1/5-1/4 of copper);
▪ can be used for electromagnetic shielding
Properties
| characteristic | 091207 | tolerance |
| thickness | 0.04~1.0 mm | ±10% |
| Thermal conductivity (X, Y axis) | 150~300 W/M.K | / |
| Thermal conductivity (z axis) | 3~5 W/M.K | / |
| Thermal diffusivity | 1.22~2.04 m2/s | / |
| hardness | 80 Shore 00 | ±10% |
| density | 1.0-1.5 g/cm3 | / |
| Specific heat capacity (50°C) | 0.82 J/kg.K | / |
| Operating temperature | -40~400 ℃ | / |
| Bend test (R5/180°) | ＞1000 Times | / |
| tensile strength | 4.9 MPa | / |
| Environmental suitability | Halogen-free/ROHS | / |
| Flammability rating | UL94 V0 | / |
| Note: The data recorded on this website are representative values rather than guaranteed values. To improve product performance, specifications are subject to change without notice. The use of the product recorded in this website is just an example. The product can have a variety of different application scenarios and environments, which are beyond our control. Therefore, whether the product is suitable for your production process and conditions, you need to make full use of it before using it. Evaluate to confirm whether its performance and effect are in line with expectations. For Industries that need to be considered safe, please test and confirm their safety in advance. In addition, the company does not guarantee that the purposes recorded on this website will not infringe any patents. Before using this product, please carefully read the explanatory text and safety data sheet (MSDS) marked on the main body of the product. This product is manufactured for general industrial Industries. Do not use for medical purposes. The above performance data is the typical data of the product tested at a humidity of 70% and a temperature of 25°C. It is for reference only when used by customers, and cannot fully guarantee all the data that can be achieved in a specific environment. Please refer to the actual measured data when using the customer. It is recommended that the user do an applicability experiment before using it to prevent the product from being used in unsuitable occasions, such as adverse consequences due to unsuitability in the applicable occasion, Duxerials Company Reserve the right to interpret the product. | ||
